VT-510 HDMI over IP extender 200m

Resolution up to 1080P@60Hz
1-to-many multicast
Transmit up to 200m
Support IR
Loopout on TX

Contact: * Company: MSN/skype: Subject: Tel: Fax: E-mail: * Website: Content: * Code: *(marked *should be filled)

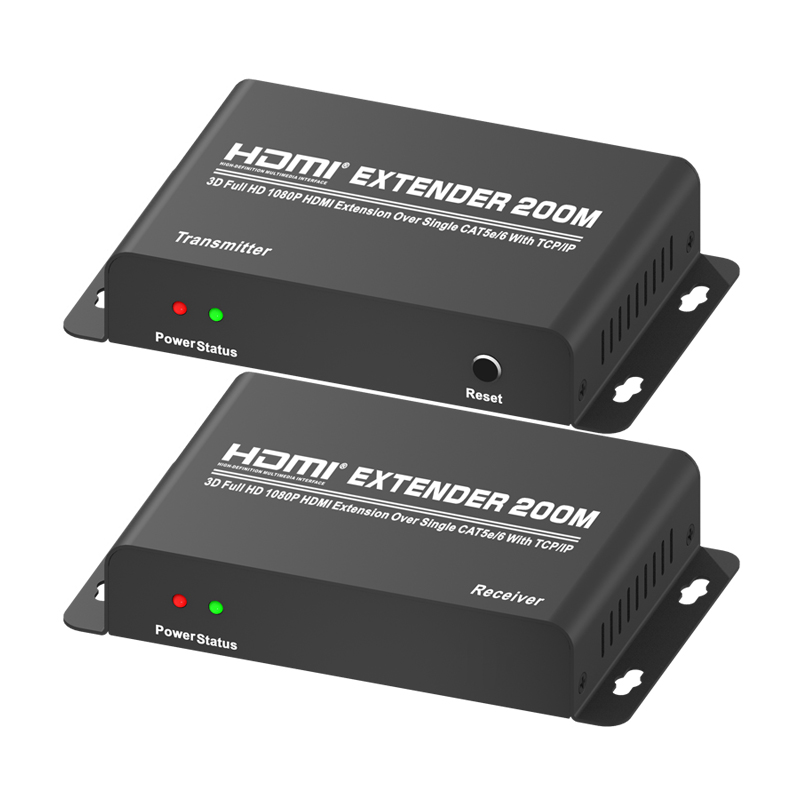

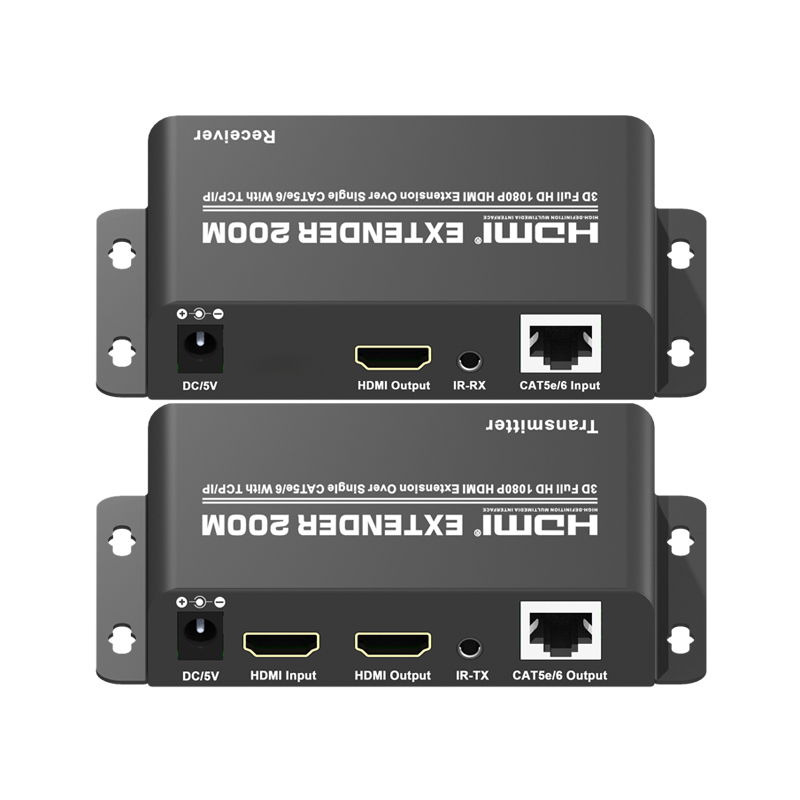

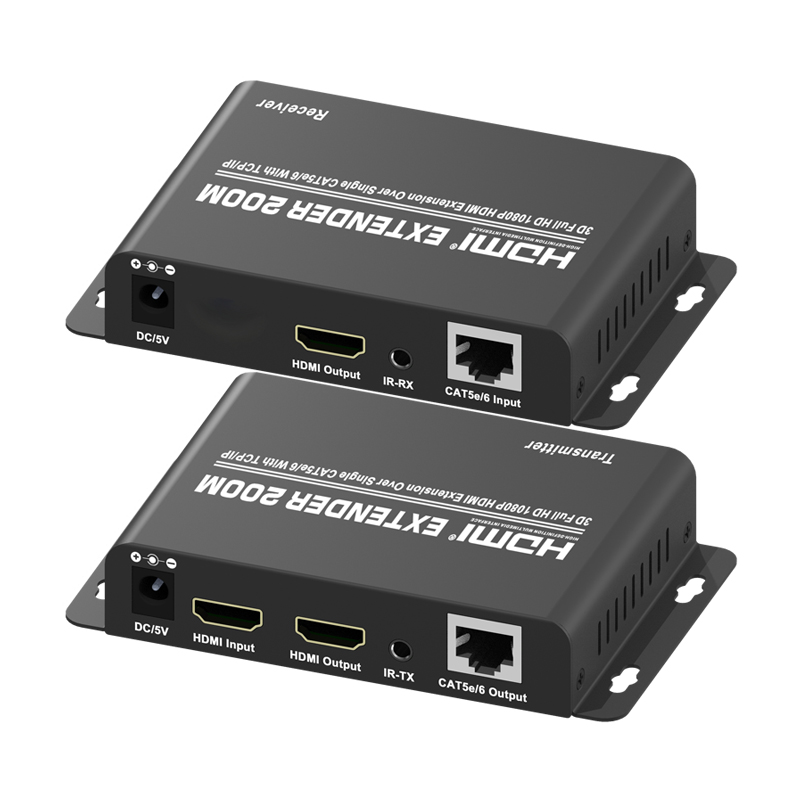

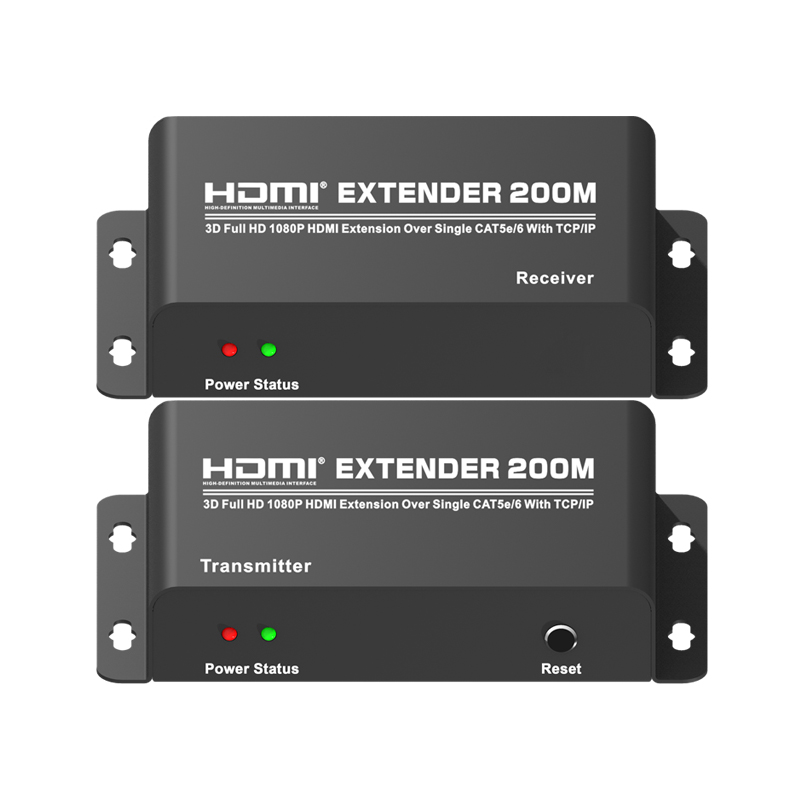

1080P HDMI over IP extender 200m

Part No.: VT-510

1.0 Introduction

VT-5200 is a model support 1-to-many multicast IP extender over single Category cable up to 200 meters.

2.0 Features

1) HDMI 1.3, HDCP 1.2 compliant

2) Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i.

3) Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i.

4) Support CEC and 20~60KHz IR pass through.

5) Support 20~60KHz IR working.

6) TCP/IP protocol compliant, multicast via ethernet switch or router.

7) Maximum receivers up to 253pcs and 200 meters over single Cat.

3.0 Packaging Accessories

1. HDMI Transmitter -------------------1PCS

2. HDMI Receiver ----------------------1PCS

3. IR Transmitter------------------------1PCS

4. IR Receiver---------------------------1PCS

5. Power Supply------------------------2PCS

6. User Manual--------------------------1PCS

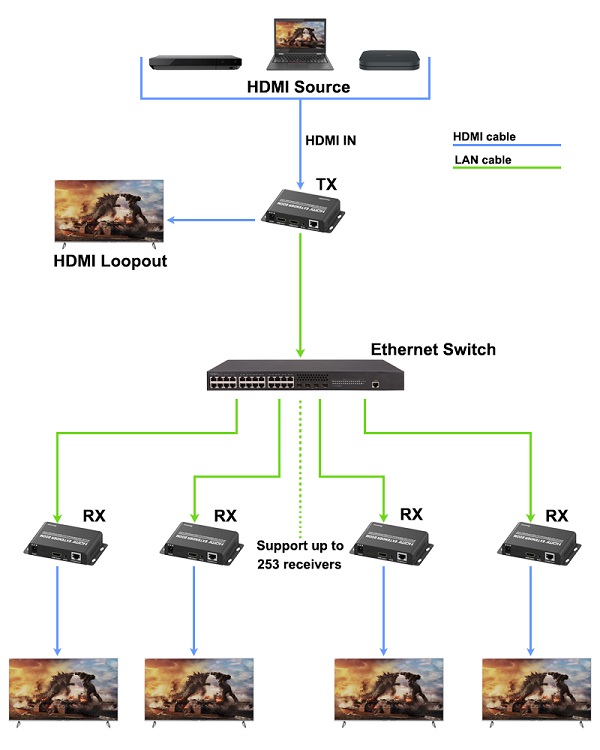

4.0 Diagram
